Celdas

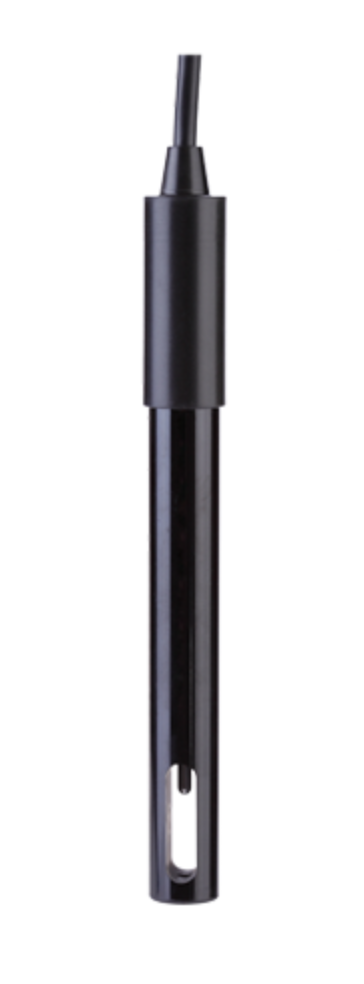

Especificaciones Celda Conductividad Vidrio

Conductivity Range ➣ 50.0 uS/cm to 200.0 mS/cm
Operating Temperature ➣ 0 to 80 °C
Temperature Sensor ➣ 10 K NTC
Cell Constant ➣ K=0.475 (4 – wire)
Length ➣ 150 mm
Diameter ➣ 15.3 mm
Body Meterial ➣ EPOXY
Sensor Material ➣ Graphite
Connector ➣ 8 pin DIN
Cable Length ➣ 1 m

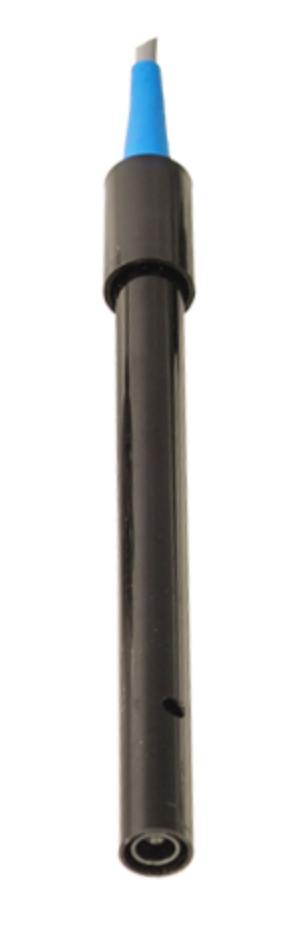

Especificaciones Celda Conductividad Epoxy

Conductivity Range ➣ 0 uS to 200 mS/cm
Cell Constant ➣ K=10 (2 wire)
Operating Temperature ➣ 0 to 80 °C
Temperature Sensor ➣ 10 K NTC
Length ➣ 150 mm
Diameter ➣ 12 mm
Body Meterial ➣ EPOXY
Sensor Material ➣ Pt
Connector ➣ 4 pin (107A) / 8 pin (107N)
Cable Length ➣ 3 m

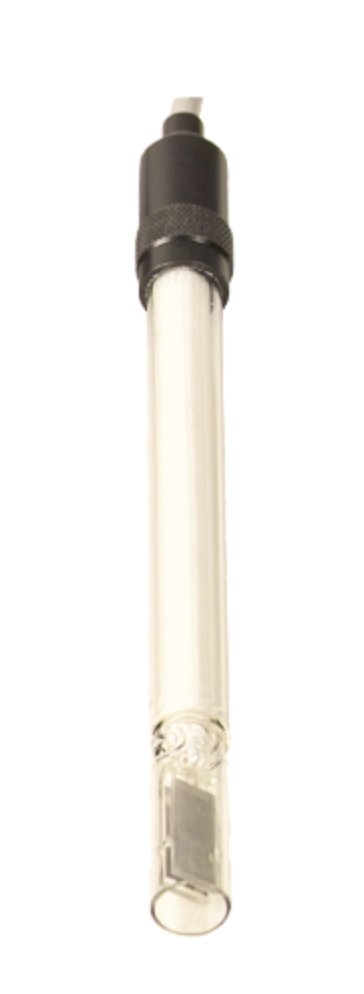

Especificaciones Celda Conductividad Vidrio / Platino

Conductivity Range ➣ 0 to 200 uS/cm
Cell Constant ➣ K=0.1 (2 wire)
Operating Temperature ➣ 5 to 90 °C
Temperature Sensor ➣ 10 K NTC
Length ➣ 155 mm
Diameter ➣ 12 mm
Body Meteria ➣ lGlass
Sensor Material ➣ Pt
Connector ➣ 4 pin （109A） / 8 pin （109L）
Cable Length ➣ 1 m
